Hyundai Venue: Indicators And Gauges / Components and components location

Hyundai Venue (QX) (2020-2025) Service Manual / Body Electrical System / Indicators And Gauges / Components and components location

Components

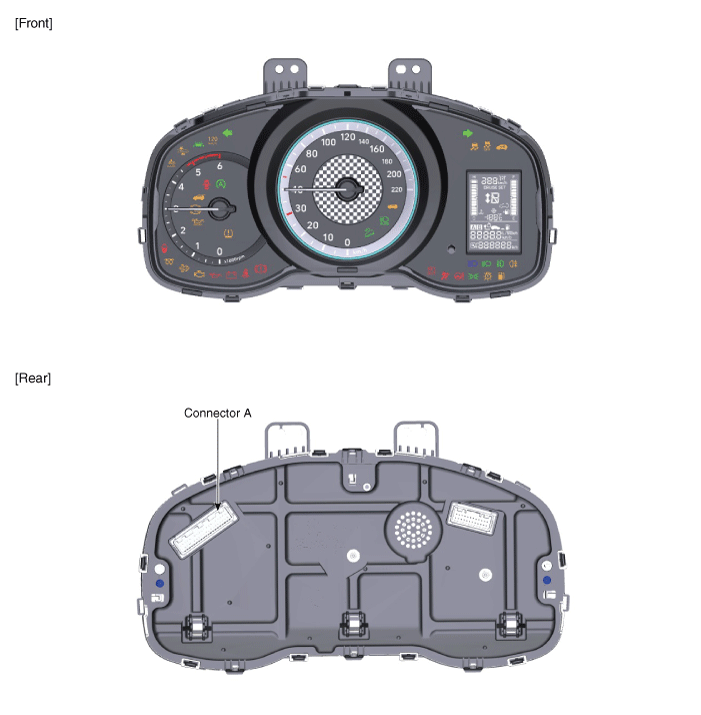

Standard

Hyundai Venue. Components and components location

Supervision

Hyundai Venue. Components and components location

Hyundai Venue. Components and components location

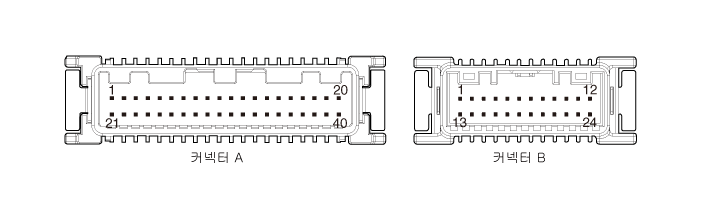

Connector Pin Information
No
Description
No
Description
Connector A
Connector B
Connector A
Connector B
1
 Ground signal 3
 -
 21
 Trip switch (-)
 Rear defogger relay ouput
2
 Illumination (-)
 -
 22
 -
 -
3
 Rheostat switch (Down) input
 -
 23
 Trip switch2 (+)
 -
4
 Rheostat switch (Up) input
 -
 24
 Drive mode switch input (+)
 -
5
 Detent output
 -
 25
 Drive mode switch input (-)
6
 AT ('P' position)
 -
 26
 -
7
 AT ('R' position)
 -
 27
 -
8
 AT ('N' position)
 -
 28
 MT ('N' position)
9
 AT ('D' position)
 -
 29
 B CAN (Low)
10
 AT ('S' position)
 -
 30
 B CAN (High)
11
 -
-
 31
 Engine run state output
12
 Vehicle speed output
 Key in switch (-)
 32
 C CAN (High)
13
 Alternator input
 -
 33
 C CAN (Low)
14
 Fuel sender input
 Rear defogger switch input
 34
 -
15
 -
 -
 35
 -
16
 Fuel sender input
 -
 36
 -
17
 -
 Driver seat belt switch input
 37
 Ground signal
18
 Airbag input
 Aisst seat belt switch input
 38
 -
19
 Oil pressure switch input
 Aisst seat mat switch input
 39
 IGN (+)
20
 -
 Ground
 40
 Battery (+)

    Indicators And Gauges

    ..

    Schematic diagrams

    ..
