Hyundai Venue: Integrated Body Control Unit (IBU) / Components and components location

Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / Integrated Body Control Unit (IBU) / Components and components location

Components

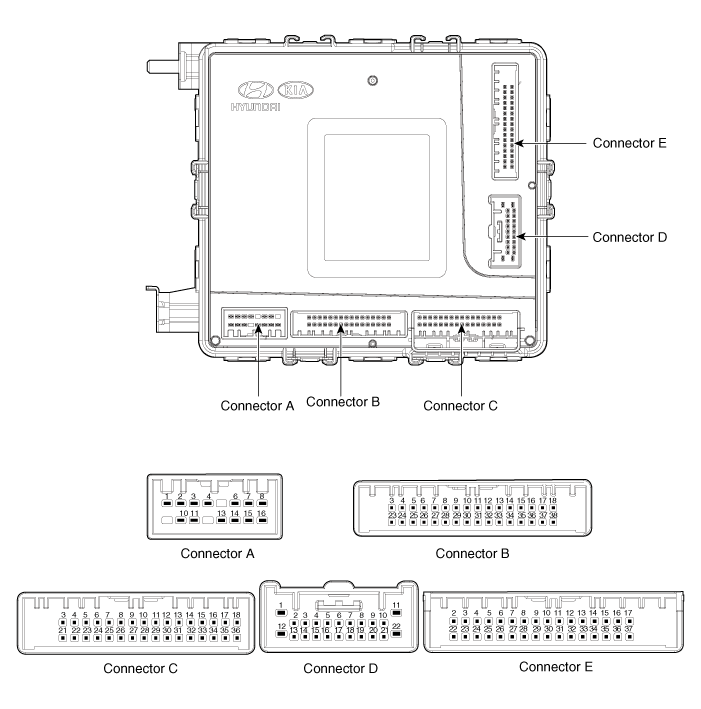

[Smart Key Type]

Hyundai Venue. Components and components location

Connector Pin Information
No
Connector A
Connector B
Connector C
Connector D
Connector E
1
 -
 -
 -
 -
 -
2
 Rear washer Switch_Input
 -
 -
 Heated handle indicator_output
 ACC Relay_output
3
 Front washer Switch_Input
 PDW-R power_output
 ATM solenoid_output
 -
 Starter Relay_output
4
 Battery (+) Power
 Hazard Switch_input
 RH Turn signal lamp actuator_output
 NTC sensor_input
 IGN1 Relay_output
5
 -
 Sunroof Status_input
 -
 Rear left seat belt indicator_output
 ESCL (-)_output
6
 GND Power
 Autolight Switch_input
 Serial communication (K-Line) with EMS
 -
 SSB Switch2_input
7
 SBL LH_output
 Rear wiper Switch_input
 ESCL Unlock Switch_input
 GND (NTC)
 SSB Switch1_input
8
 SBL Power_input
 Front wiper volume Switch_input
 Front wiper low backup switch_input
 -
 Outside Hnadle Antenna Passenger (+)_output
9
 -
 Turn Signal Switch_input
 P position_input (AT)
 -
 Interior Antenna1 Power_output
Clutch IGN Lock_input (MT)
10
 Turn Signal Power_input
 Fog Switch FR_input
 Wiper parking switch_input
 -
 Interior Antenna2 Power_output
11
 Battery (+) ECU
 Front wiper switch_input
 Brake Switch_input
 -
 Outside Hnadle Antenna Driver (+)_output
12
 -
 Headlamp High Switch_input
 -
 -
 Bumper Antenna Power_output
13
 Static Bending RH_output
 ACC_input
 -
 Heated handle switch_input
 -
14
 GND ECU
 IGN2_input
 Safety Power Window Enable_output
 Rear left seat belt switch_output
 -
15
 -
 -
 -
 Rear right seat belt indicator_output
 -
16
 -
 PDW Power_input
 Front wiper low relay_output
 Rear center seat belt switch_output
 -
17
Turn Signal FR LH_output
 Front wiper high relay_output
Wheel Speed Sensor_input
18
 Turn Signal RR LH_output
 -
 -
 -
19
 -
 -
 Rear center seat belt indicator_output
 -
20
 -
 -
 -
 -
21
 -
 -
 -
 -
22
 -
 External Buzzer_output
 -
 IGN2 Relay_output
23
 -
 -
ESCL (+)_output
24
 IGN 1_input
 Multi function switch GND_input
 ESCL enable_output
25
 Room lamp _output
 Rear right seat belt switch_input
 Starter feedback_input
26
 -
 Immobilizer Power_output
 Driver Outside handle_output
27
 PDW-R switch_input
 Immobilizer GND_output
 Passenger Outside handle_output
28
 Turn signal actuator_output
 AV Tail_output
 Passenger Outside handle antenna (-)_output
29
 -
 -
 Interior antenna 1 GND_output
30
 PDW-R indicator_input
 -
 Interior antenna 2 GND_output
31
 Autolight sensor GND_output
 Alatm Horn Relay_output
 Driver Outside handle antenna (-)_output
32
 Autolight sensor signal_output
 ESCL COM
 Bumper antenna GND_output
33
 Autolight sensor power_output
 -
 -
34
 LIN
 Rear wiper relay_output
 -
35
 B-CAN (Low)
 C-CAN (High)
 -
36
 B-CAN (High)
 C-CAN (Low)
 -
37
 Turn Signal RR RH_output

38
 Turn Signal FR RH_output

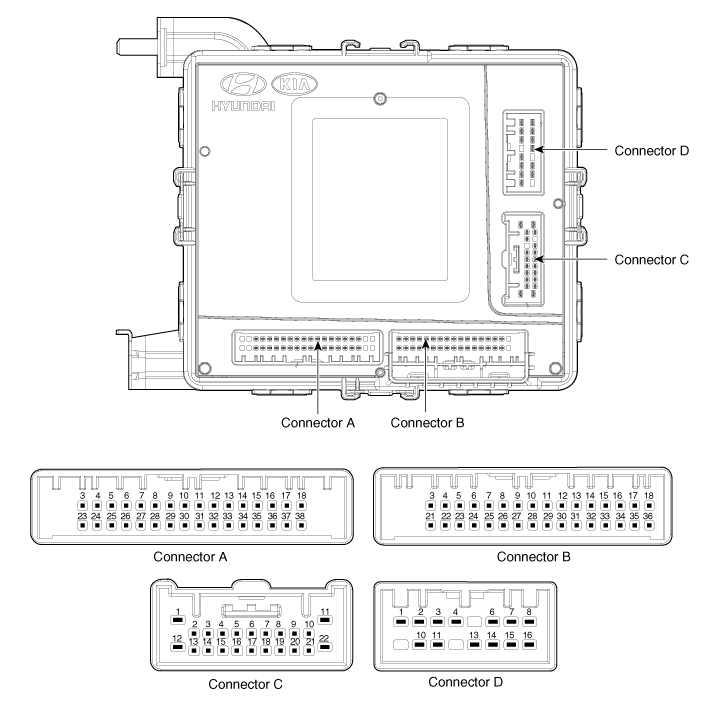

[Non Smart Key Type]

Hyundai Venue. Components and components location

No
Connector A
Connector B
Connector C
Connector D
1
 -
 -
 -
 -
2
 Rear washer Switch_Input
 -
 -
 Heated handle indicator_output
3
 Front washer Switch_Input
 PDW-R power_output
 ATM solenoid_output
 -
4
 Battery (+) Power
 Hazard Switch_input
 RH Turn signal lamp actuator_output
 NTC sensor_input
5
 -
 Sunroof Status_input
 -
 Rear left seat belt indicator_output
6
 GND Power
 Light Switch_input
 L-Line (Immobilizer)
 -
7
 Static Bending LH_output
 Rear wiper Switch_input
 Start inhibit relay_output
 GND (NTC)
8
 Static Bending Power_input
 Front wiper volume Switch_input
 Front wiper low backup switch_input
 -
9
 -
 Turn Signal Switch_input
 Key interlock switch_input
 -
10
 Turn Signal Power_input
 Fog Switch FR_input
 Wiper parking switch_input
 -
11
 Battery (+) ECU
 Front wiper switch_input
 Brake Switch_input
 -
12
 -
 Headlamp High Switch_input
 -
 -
13
 Static Bending RH_output
 ACC_input
 -
 Heated handle switch_input
14
 GND ECU
 IGN2_input
 Safety Power Window Enable_output
 Rear left seat belt switch_output
15
 Heated handle power_output
 -
 -
 Rear right seat belt indicator_output
16
 IG2_Heated handle power
 PDW Power_input
 Front wiper low relay_output
 Rear center seat belt switch_output
17
Turn Signal FR LH_output
 Front wiper high relay_output
18
 Turn Signal RR LH_output
 -
 -
19
 -
 -
 Rear center seat belt indicator_output
20
 -
 -
 -
21
 -
 Key interlock switch_input
 -
22
 -
 -
 -
23
 -
 -
24
 IGN 1_input
 Multifunction switch GND_input
25
 Roomlamp_output
 Rear right seat belt switch_input
26
 -
 Immobilazer antenna power_output
27
 PDW-R switch_input
 Immobilazer antenna GND_output
28
 Turn signal actuator_output
 AVT tail_output
29
 -
 -
30
 PDW-R indicator_input
 -
31
 Autolight sensor GND_output
 Alarm horn relay_output
32
 Autolight sensor signal_output
 -
33
 Autolight sensor power_output
 -
34
 LIN 1
 Rear wiper relay_output
35
 B-CAN (Low)
 C-CAN (High)
36
 B-CAN (High)
 C-CAN (Low)
37
 Rear right turn signal_output
38
 Front right turn signal_output

    Specifications

    Specifications Items Specifications Rated voltage DC 12V Operating voltage DC 9 - 16V Operating temperature -40°F to 185°F (-40°C to 85°C) Dark current Less than 3...
