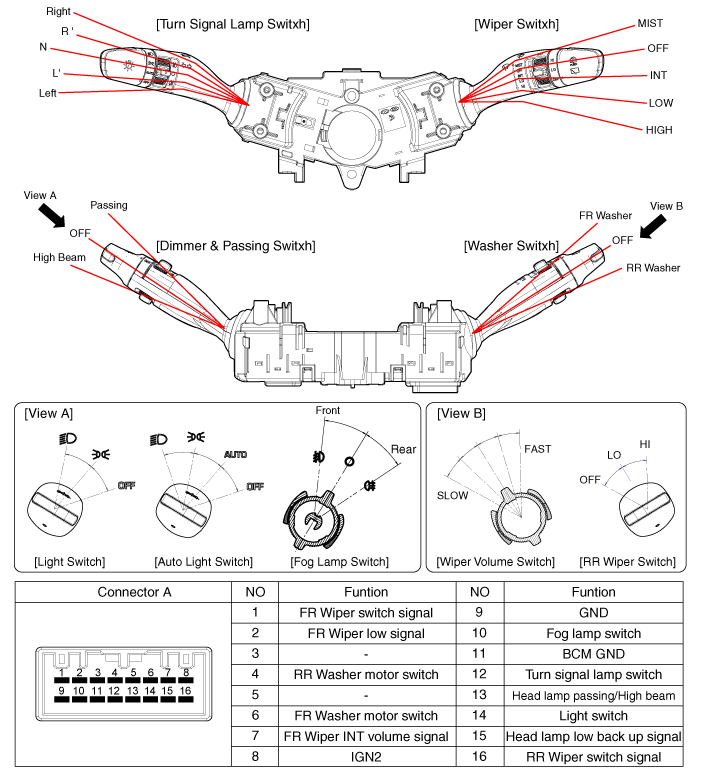

Hyundai Venue: Multifunction Switch / Components and components location

Specifications

Specifications Items Specifications Rated voltage 12 V (Test Voltage : 5V ± 0.1V, Washer : 14V ± 0...

Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering wheel. (Refer to Steering System - "Steering Wheel") 3...
