Hyundai Venue: Audio / Antenna. Repair procedures

Hyundai Venue (QX) (2020-2024) Service Manual / Body Electrical System / Audio / Antenna. Repair procedures

Removal
1.
Remove the rear roof trim.
(Refer to Body - "Roof Trim Assembly")
2.
Disconnect the roof antenna cable and connector (A) and then remove the antenna mounting nut (B).

Hyundai Venue. Antenna. Repair procedures

3.

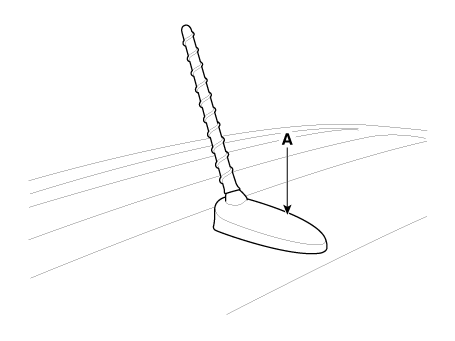

Remove the roof antenna (A).

Hyundai Venue. Antenna. Repair procedures

Installation
1.
Connect the roof antenna connectors.
2.
Install the rear roof trim.
Hyundai Venue. Antenna. Repair procedures
Make sure that the cables and connectors are plugged in properly.
Check the audio system functionality.
