| Removal |
| 1. |
Remove the ignition key from the vehicle.
|
| 2. |
Disconnect the battery negative cable and wait for at least three minutes
before beginning work.
|
| 3. |
Remove the floor console.
(Refer to Body - "Floor Console Assembly")
|
| 4. |

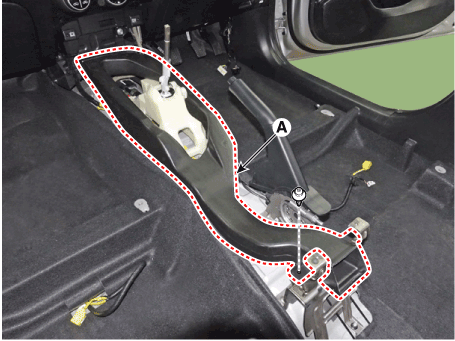

Remove the air duct (A).
|
| 5. |

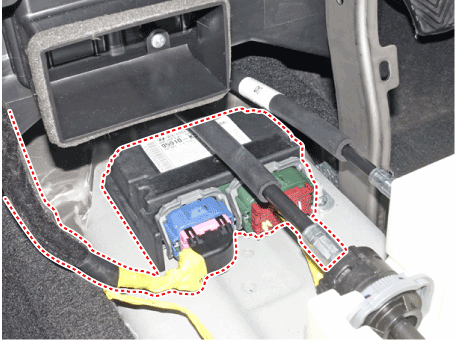

Disconnect the SRSCM connectors.
|
| 6. |

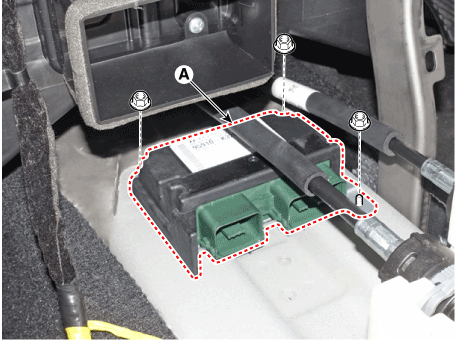

Remove the SRSCM (A) after loosening the mounting nuts.
|
| Installation |
| 1. |
Remove the ignition key from the vehicle.
|
| 2. |
Disconnect the battery negative cable and wait for at least three minutes
before beginning work.
|
| 3. |
Install the SRSCM (A) with the SRSCM mounting nuts.
|
| 4. |
Connect the SRSCM harness connectors.
|
| 5. |
Install the heater ducts and floor console.
(Refer to Body - "Floor Console Assembly")
|
| 6. |
Reconnect the battery negative cable.
|
| 7. |
After installing the SRSCM, confirm proper system operation :
Turn the ignition switch ON; the SRS indicator light should be turned
on for about six seconds and then go off.
|
| Variant Coding |
| 1. |
Connect the cable of GDS to the data link connector in driver side crash
pad lower panel, and turn on the GDS.
|
| 2. |

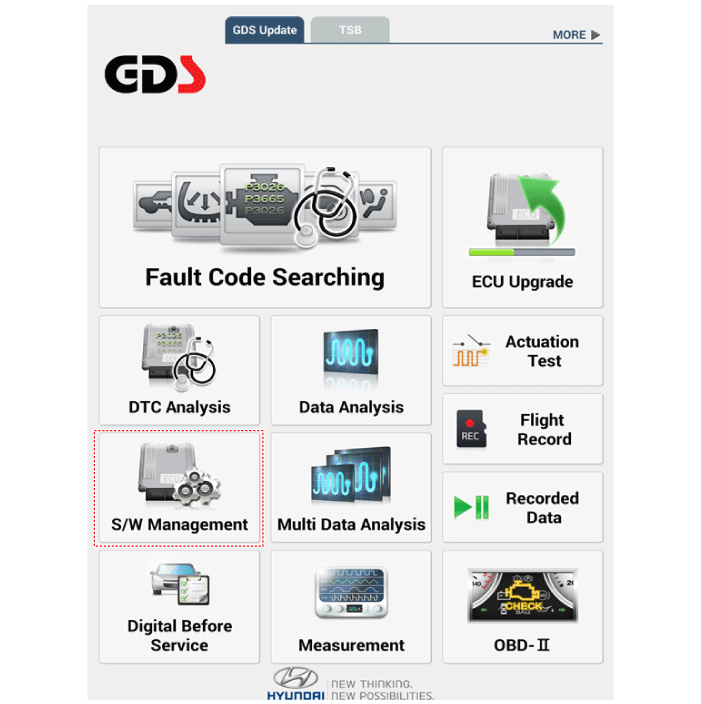

Select the 'S/W Management' and 'Car model'.
|
| 3. |

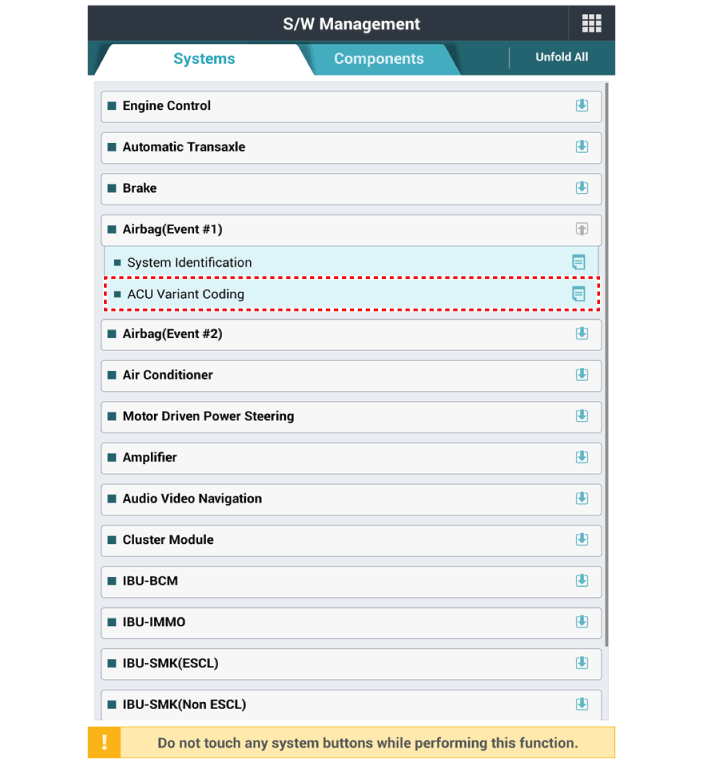

Select "Airbag" and "ACU/SRSCM Variant Coding".
|
| 4. |

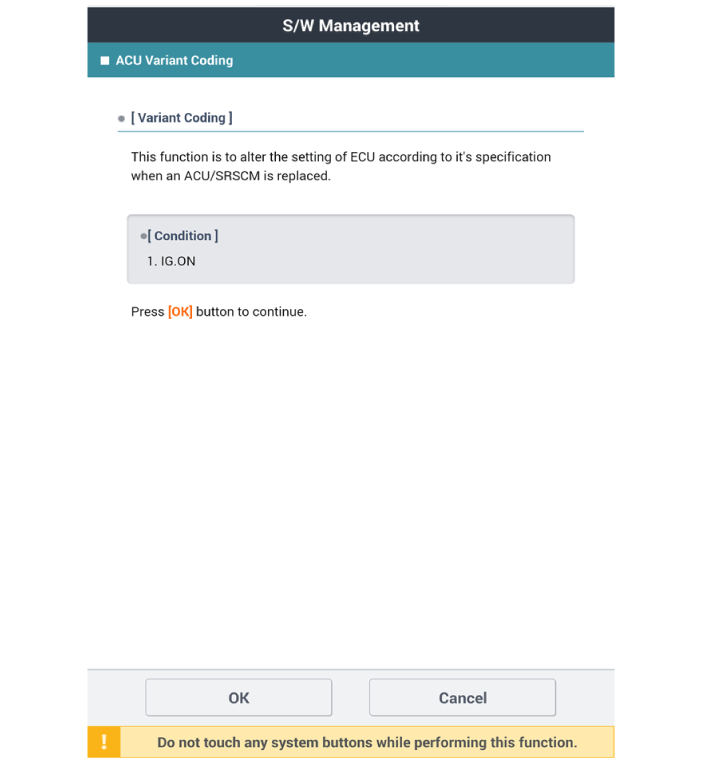

Perform the "ACU/SRSCM Variant Coding" procedure according to the GDS
screen message.
|
Components 1. Supplemental Restraint System Control Module (SRSCM) Supplemental Restraint System Control Module (SRSCM) No Connector A Connector B 1 Driver airbag 2st stage High (+) - 2 Driver airbag 2st stage Low (+) - 3 Passenger airbag 2st stage Low (+) - 4 Passenger airbag 2st stage High (+) - 5 - - 6 - - 7 - - 8 - Retractor pretensioner-Rear, passenger HIGH (+) 9 - Retractor pretensioner-Rear, passenger LOW (-) 10 Battery (+) - 11 Crash Output - 12 Passenger Airbag 1st Stage LOW (-) - 13 Passenger Airbag 1st Stage HIGH (+) - 14 - - 15 - - 16 Passenger airbag OFF lamp/Telltale lamp - 17 Passenger airbag ON lamp Curtain Airbag Passenger LOW (-) 18 Curtain Airbag Passenger HIGH (+) 19 Driver Airbag 1st HIGH (+) Curtain Airbag Driver HIGH (+) 20 Driver Airbag 1st LOW (-) Curtain Airbag Driver LOW (-) 21 - Side Airbag Front Passenger LOW (-) 22 - Side Airbag Front Passenger HIGH (+) 23 - Side Airbag Front Driver HIGH (+) 24 - Side Airbag Front Driver LOW (-) 25 - Adaptive load limiter, passenger LOW (-) 26 C-CAN LOW (-) Adaptive load limiter, passenger HIGH (+) 27 C-CAN HIGH (+) Retractor Pretensioner Front Driver LOW (-) 28 IGN 1 Retractor Pretensioner Front Driver HIGH (+) 29 Front Impact Sensor Driver_ HIGH (+) - 30 Front Impact Sensor_Driver LOW (-) - 31 Front Impact Sensor_Passenger LOW (-) - 32 Front Impact Sensor_Passenger HIGH (+) Retractor Pretensioner Front Passenger HIGH (+) 33 Passenger airbag On/Off switch HIGH (+) Retractor Pretensioner Front Passenger LOW (-) 34 Passenger airbag On/Off switch LOW (-) - 35 L-CAN LOW (-) - 36 L-CAN HIGH (+) - 37 - 38 Adaptive load limiter, driver LOW (-) 39 Adaptive load limiter, driver HIGH (+) 40 Ground 41 - 42 - 43 - 44 - 45 - 46 - 47 Side Impact Sensor Front Driver HIGH (+) 48 Side Impact Sensor Front Driver LOW (-) 49 Side Impact Sensor Front Passenger LOW (-) 50 Side Impact Sensor Front Passenger HIGH (+) 51 - 52 -
Description • The front impact sensor (FIS) is installed on the upper of the side panel in Front End Module (FEM).
Variant Coding When you need variant coding: – Replace Front View Camera with a new one ※ EOL Variant Coding and calibration required for new replacement Front View Camera Variant Coding
