Hyundai Venue (QX): SRSCM / Schematic diagrams

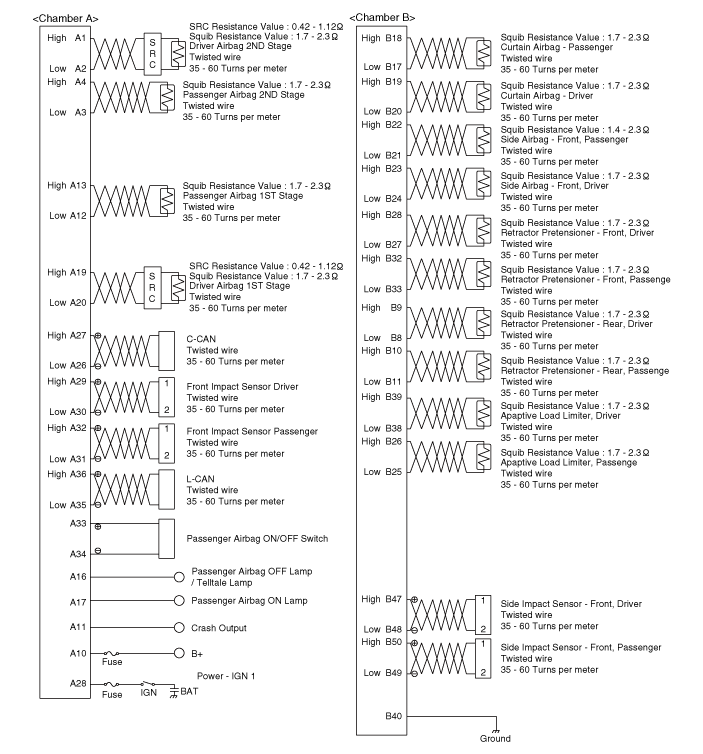

Circuit Diagram

Hyundai Venue. Schematic diagrams

    Components 1. Front right Impact Sensor (FIS) 2. Supplemental Restraint System Control Module (SRSCM) 3. Gravity Side Impact Sensor (G-SIS)

    Description • Supplemental Restraint System Control Module (SRSCM) determines whether and when to deploy air bag module, seat belt pretensioner (BPT).

    Other information:

    Hyundai Venue (QX) (2020-2025) Service Manual: Mode Control Actuator. Repair procedures

    Inspection 1. Turn the ignition switch OFF. 2. Disconnect the mode control actuator connector. 3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to terminal 3 and grounding terminal 4.

    Hyundai Venue (QX) (2020-2025) Service Manual: Blower Resistor (Manual). Repair procedures

    Inspection 1. Measure the resistance between the terminals. 2. The measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor) Replacement 1.
