Hyundai Venue (QX): TailGate / Repair procedures
Hyundai Venue (QX) (2020-2026) Service Manual / Body (Interior and Exterior) / TailGate / Repair procedures
| Adjustment |
| 1. |
Place the car on a flat surface and check whether thebody and trunk
lid are well-aligned.
|
| 2. |

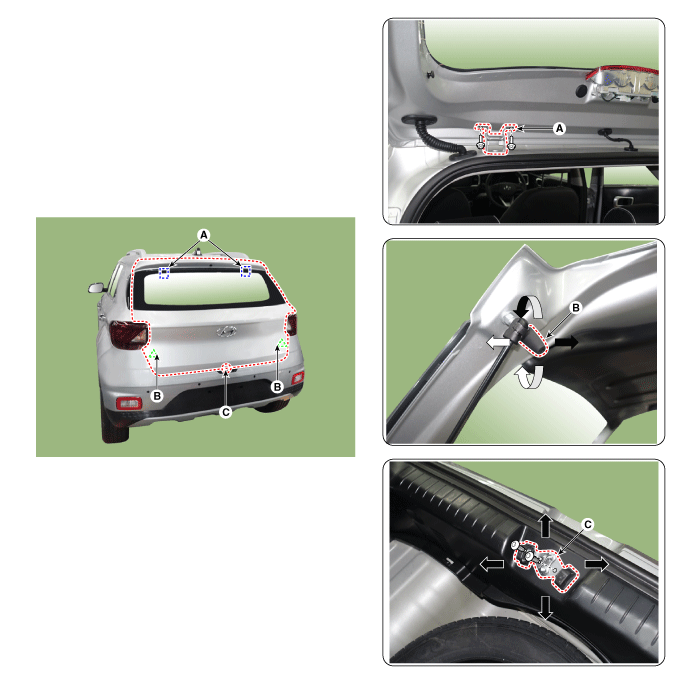

After loosening the tailgate hinge (A) mounting bolt,adjust the tailgate
by moving it up and down or fromside to side.
|
| 3. |
Adjust the gap between the tailgate and body byturning the tailgate
overslam bumpers (B).
|
| 4. |
After loosening the tailgate striker (C) mounting bolts,adjust the striker
by moving it back and forth or fromside to side and then tighten the
mounting bolts.
|
| 5. |
Make sure the tailgate opens or closes properly.
|
Component Location 1. Tailgate assembly
