Hyundai Venue: Windshield Defrosting and Defogging / Rear Window Defroster

Hyundai Venue (QX) (2020-2025) Owners Manual / Convenient Features / Windshield Defrosting and Defogging / Rear Window Defroster

NOTICE

To prevent damage to the rear window defroster conducting elements bonded to the inside surface of the rear window, never use sharp instruments or window cleaners containing abrasives to clean the window.

If you want to defrost and defog the front windshield, refer to the “Windshield Defrosting and Defogging” section in this chapter.

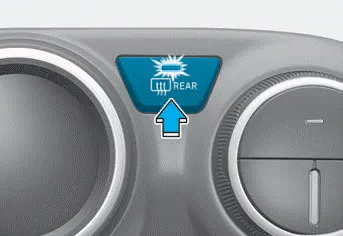

Hyundai Venue. Rear Window Defroster

Manual climate control system

Hyundai Venue. Rear Window Defroster

Automatic climate control system

The defroster heats the window to remove frost, fog and thin ice from the interior and exterior of the rear window, while the engine is running.

To activate the rear window defroster, press the rear window defroster button located in the center control panel. The indicator on the rear window defroster button illuminates when the defroster is ON.
To turn off the defroster, press the rear window defroster button again.

Information

If there is heavy accumulation of snow on the rear window, brush it off before operating the rear defroster.
The rear window defroster automatically turns off after approximately 20 minutes or when the ignition switch is in the LOCK/OFF position.

Side view mirror defroster (if equipped)

If your vehicle is equipped with the side view mirror defrosters, they will operate at the same time you turn on the rear window defroster.
