Replacement
[Rear seat cushion assembly]
1.

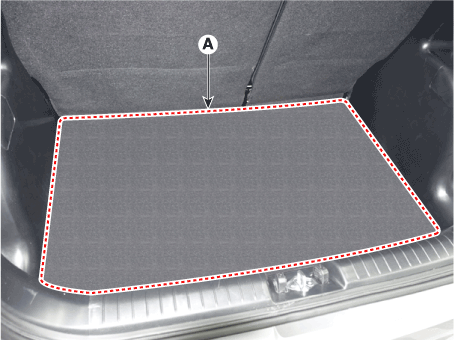

Remove the luggage covering bord (A).

Hyundai Venue. Rear Seat Assembly. Repair procedures

2.

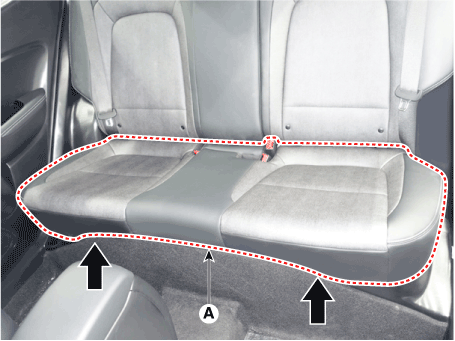

Loosen the mounting bolts and remove the rear seat cushion assembly (A).
Tightening torque :
21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

Hyundai Venue. Rear Seat Assembly. Repair procedures

Hyundai Venue. Rear Seat Assembly. Repair procedures

3.
To install, reverse the removal procedure.
[Rear seat back assembly]
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.

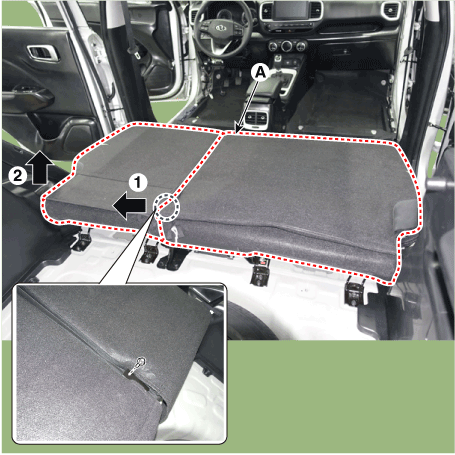

Pull up the rear seat back assembly (A) by pulling the stand-up lever.
3.

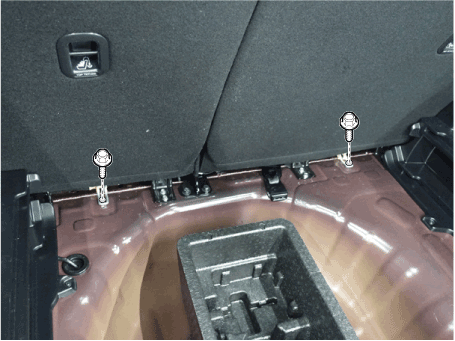

Loosen the mounting bolt and remove the rear seat back assembly (A).
Tightening torque :
21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

Hyundai Venue. Rear Seat Assembly. Repair procedures

4.
To install, reverse removal procedure.
