Hyundai Venue: Exterior Lights / High Beam Assist (HBA)

High Beam Assist (HBA) is a system that automatically adjusts the headlamp range (switches between high beam and low beam) according to the brightness of other vehicles and road conditions.

Operating condition

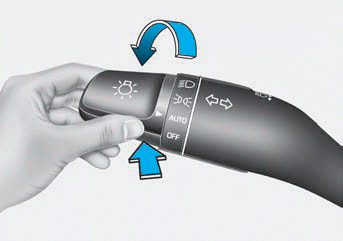

1. Place the headlamp switch in the AUTO position.

2. Turn on the high beam by pushing the lever away from you. The High Beam Assist () indicator will illuminate.

3. High Beam Assist system will turn on when vehicle speed is above 25 mph (40 km/h).

• If the headlamp switch is pushed away when the High Beam Assist system is operating, High Beam Assist system will turn off and the high beam will be on continuously.
• If the headlamp switch is pulled towards you when the high beam is OFF, the high beam will turn ON without High Beam Assist system canceled. When you let go of the light switch, the lever will move to the middle and the high beam will turn OFF.
• If the headlamp switch is pulled towards you when the high beam is on by High Beam Assist system, the low beam will be on and the High Beam Assist system will turn OFF.
• If the headlamp switch is placed to the headlamp ON position, High Beam Assist system will turn off and the low beam will be on continuously.

When High Beam Assist system is operating, the high beam switches to low beamif any of the following conditions occur:

-- When the headlamp of an on-coming vehicle is detected.
-- When the tail lamp of a vehicle in front is detected.
-- When the headlamp or tail lamp of a motorcycle or a bicycle is detected.
-- When the surrounding ambient light is bright enough that high beams are not required.
-- When streetlights or other lights are detected.
-- When the headlamp switch is not in the AUTO position.
-- When High Beam Assist system is off.
-- When vehicle speed is below 22MPH (35 km/h).

Warning light and message

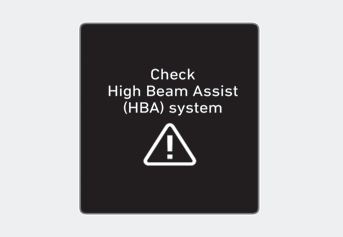

When High Beam Assist system is not working properly, the Check High Beam Assist warning message will come on for a few second. After the message disappears, the master warning light () will illuminate. Take your vehicle to an authorized HYUNDAI dealer and have the system checked.

CAUTION

The system may not operate normally if any of the following conditions should occur:

1. When the illumination from an oncoming vehicle or a vehicle in front is dim. Such examples may include:

• When the headlamps of an oncoming vehicle or the tail lamps of a vehicle in front is covered with dust, snow, or water.
• When the headlamps on an oncoming vehicle are OFF, but the fog lamps are ON.

2. When the High Beam Assist camera is adversely affected by an external condition. Such examples may include:

• When the vehicle’s headlamps have been damaged or not repaired properly.
• When the vehicle headlamps are not aimed properly.
• When the vehicle is driven on a narrow curved road or rough road
• When the vehicle is driven on an uphill road or downhill road
• When only part of the vehicle in front is visible on a crossroad or curved road.
• When there is a traffic light, reflecting sign, flashing sign or mirror.
• When the road conditions are bad such as being wet or covered with snow.
• When a vehicle suddenly appears from a curve.
• When the vehicle is tilted from a flat tire or being towed.
• When the Lane Keeping Assist system warning light illuminates.
• When the light from the on-coming or front vehicle is not detected because of exhaust fume, smoke, fog, snow, etc.
• When the front window is covered with foreign matters such as ice, dust, fog, or is damaged.

3. When the forward visibility is poor. Such examples may include:

• When the headlamps of an oncoming vehicle or a vehicle in front is not detected due to poor outside visibility (smog, smoke, dust, fog, heavy rain, snow, etc.).
• When the windshield visibility is poor.

WARNING

• Do not attempt to disassemble the front view camera without the assistance of an authorized HYUNDAI dealer technician. If the front camera is removed for any reason, the system may need to be re-calibrated. Have the system inspected by an authorized HYUNDAI dealer.
• If the windshield of your vehicle is replaced, most likely the front view camera will need to be re-calibrated. If this occurs, have your vehicle inspected and have the system recalibrated by an authorized HYUNDAI dealer.
• Be careful that water doesn’t get into High Beam Assist unit and do not remove or damage related parts of High Beam Assist system.
• Do not place objects on the crash pad that reflect light such as mirrors, white paper, etc. The system may malfunction if sunlight is reflected.
• At times, High Beam Assist system may not work properly. The system is for your convenience only. It is the responsibility of the driver for safe driving practices and always check the road conditions for your safety.
• When the system does not operate normally, change the headlamp position manually between the high beam and low beam.
