Hyundai Venue: Heater / Heater Unit. Components and components location

Hyundai Venue (QX) (2020-2025) Service Manual / Heating, Ventilation and Air Conditioning / Heater / Heater Unit. Components and components location

Component Location

Hyundai Venue. Heater Unit. Components and components location

1. Heater unit assembly

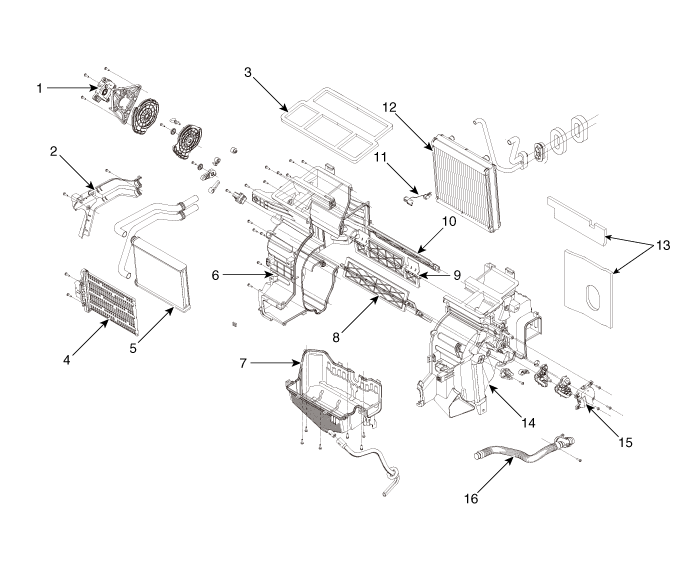

Compoents

Hyundai Venue. Heater Unit. Components and components location

1. Mode control actuator
2. Heater core case
3. Center duct seal
4. PTC heater
5. Heater core assembly
6. Heater case [LH]

7. Heater lower cover
8. Foot door assembly
9. Vent door assembly
10. DEF door assembly
11. Evaporator temperature sensor
12. Evaporator assembly

13. Heater unit pad
14. Heater case [RH]
15. Temperature control actuator
16. Aspirator hose

Heater

Heater Unit. Repair procedures

Replacement 1. Disconnect the negative (-) battery terminal. 2. Recover the refrigerant with a recovery / recycling / charging station...
