Hyundai Venue: Lighting System / Hazard Lamp Switch. Repair procedures

Hyundai Venue (QX) (2020-2025) Service Manual / Body Electrical System / Lighting System / Hazard Lamp Switch. Repair procedures

Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Remove the center fascia panel.
(Refer to BODY - "Crash pad Center Fascia Panel:)
3.

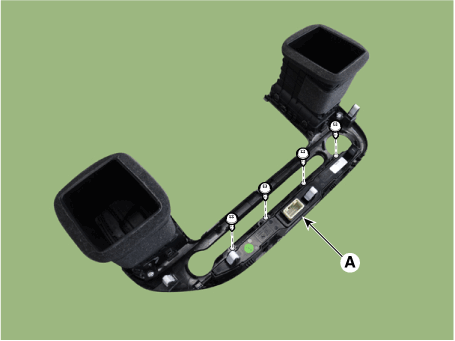

Remove the hazard lamp switch (A) after loosening mounting screws.

Hyundai Venue. Hazard Lamp Switch. Repair procedures
