Hyundai Venue: Fuel Delivery System / Fuel pressure test
1. |
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel
Line")
•
|
When removing the fuel pump fuse, a Diagnostic Trouble
Code (DTC) may occur. Delete the code with the diagnostic
tool after completion of "Release Residual Pressure
in Fuel Line" work.
|
|
|
2. |
Install the Special Service Tool (SST).
(1) |
Disconnect the fuel feed tube from the delivery pipe.
• |
There may be some residual pressure even after
“Release Residual Pressure in Fuel Line” work,
so cover the hose connection with a shop towel
to prevent residual fuel from spilling out before
disconnecting any fuel connection.
|
|
|
(2) |

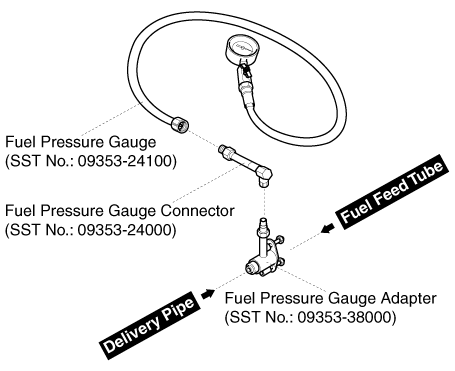

Install the special service tool for measuring the fuel pressure
in between the fuel feed tube and the fuel delivery pipe (Refer
to the figure below).

|
|
3. |
Inspect fuel leakage on connections among the fuel feed tube, the delivery
pipe, and the SST components with IG ON.
|
4. |
Measure Fuel Pressure.
(1) |
Start the engine and measure the fuel pressure at idle.
Fuel Pressure :
323 - 363 kPa (3.3 - 3.7 kgf/cm², 46.8 - 52.6 psi)
|
• |
If the fuel pressure differs from the standard
value, repair or replace the related part (Refer
to the table below).
|
|
Fuel Pressure
|
Cause
|
Related Part
|
Too Low
|
Fuel filter clogged
|
Fuel Filter
|
Fuel leakage
|
Fuel Pressure Regulator
|
Too High
|
Fuel pressure regulator valve stuck
|
Fuel Pressure Regulator
|
|
(2) |
Stop the engine, and then check for the change in the fuel pressure
gauge reading.
Standard Value : The gauge reading should hold for about
5 minutes after the engine stops
|
• |
If the gauge reading should not be held, repair
or replace the related part (Refer to the table
below).
|
|
Fuel Pressure (After Engine Stops)
|
Cause
|
Related Part
|
Fuel Pressure Drops Slowly
|
Leakage on injector
|
Injector
|
Fuel Pressure Drops Immediately
|
Check valve of fuel pump stuck open
|
Fuel Pump
|
|
(3) |
Turn the ignition switch OFF.
|
|
5. |
Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel
Line")
•
|
When removing the fuel pump fuse, a Diagnostic Trouble
Code (DTC) may occur. Delete the code with the diagnostic
tool after completion of "Release Residual Pressure
in Fuel Line" work.
|
|
|
6. |
Test End
(1) |
Remove the Special Service Tool (SST) from the fuel feed tube
and the delivery pipe.
|
(2) |
Connect the fuel feed tube and the delivery pipe.
|
|
