Disassembly |
|
|
1. |
Remove the engine and transaxle assembly from the vehicle.
(Refer to Engine and Transaxle Assembly - "Engine and Transaxle Assembly")
|
2. |
Remove the transaxle assembly from the engine assembly.
|
3. |
Remove the drive plate or flywheel.
|
4. |
Remove the rear oil seal.
(Refer to Cylinder Block Assembly - "Rear Oil Seal")
|
5. |
Install the engine assembly to engine stand for disassembly.
|
6. |
Remove the intake manifold with the electronic throttle control (ETC)
module.
(Refer to Intake and Exhaust System - "Intake Manifold")
|
7. |
Remove the exhaust manifold.
(Refer to Intake and Exhaust System - "Exhaust Manifold")
|
8. |
Remove the timing chain.
(Refer to Timing System - "Timing Chain")
|
9. |
Remove the cylinder head assembly.
(Refer to Cylinder Head Assembly - "Cylinder Head")
|
10. |
Remove the oil filter.
(Refer to Lubrication System - "Oil Filter")
|
11. |
Remove the oil pressure switch.
(Refer to Lubrication System - "Oil Pressure Switch")
|
12. |
Remove the crankshaft position sensor.
(Refer to Engine Control/Fuel System - "Crankshaft Position Sensor (CKPS)")
|
13. |
Remove the oil pan and the oil screen.
(Refer to Lubrication System - "Oil Pan")
|
14. |
Remove the ladder frame.
(Refer to Cylinder Block Assembly - "Piston and Connecting Rod")
|
15. |
Check the connecting rod side clearance.
(Refer to Cylinder Block Assembly - "Piston and Connecting Rod")
|
16. |
Check the connecting rod bearing cap oil clearance.
(Refer to Cylinder Block Assembly - "Piston and Connecting Rod")
|
17. |
Remove the piston and connecting rod assemblies.
(Refer to Cylinder Block Assembly - "Piston and Connecting Rod")
|
18. |
Check the main bearing oil clearance.
(Refer to Cylinder Block Assembly - "Crankshaft")
|
19. |
Check the crankshaft end play.
(Refer to Cylinder Block Assembly - "Crankshaft")
|
20. |
Remove the crankshaft.
(Refer to Cylinder Block Assembly - "Crankshaft")
|
21. |
Remove the water inlet fitting and thermostat.
(Refer to Cooling System - "Thermostat")
|
22. |
Remove the knock sensor.
(Refer to Engine Control/Fuel System - "Knock Sensor (KS)")
|
Inspection |
1. |
Using a gasket scraper, remove all the gasket material from the top
surface of the cylinder block.
|
2. |
Using a soft brush and solvent, thoroughly clean the cylinder block.
|
3. |

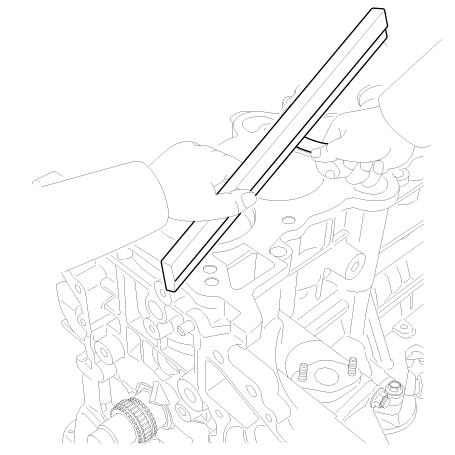

Inspect the top surface of cylinder block for flatness.
Using a precision straight edge and feeler gauge, measure the surface
contacting the cylinder head gasket for warpage.
|
4. |
Inspect the cylinder bore.
Visually check the cylinder for vertical scratchs.
If deep scratchs are present, replace the cylinder block.
|
5. |

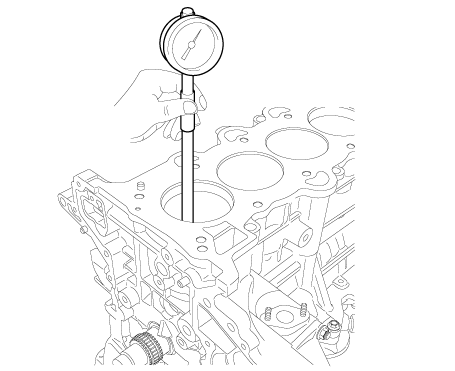

Inspect the cylinder bore diameter.
Using a cylinder bore gauge, measure the cylinder bore diameter at position
in the thrust and axial direction.
|
Reassembly |
1. |
Install in the reverse order of disassembly.
|
