Hyundai Venue: Master Cylinder / Components and components location

Hyundai Venue (QX) (2020-2025) Service Manual / Brake System / Master Cylinder / Components and components location

Components

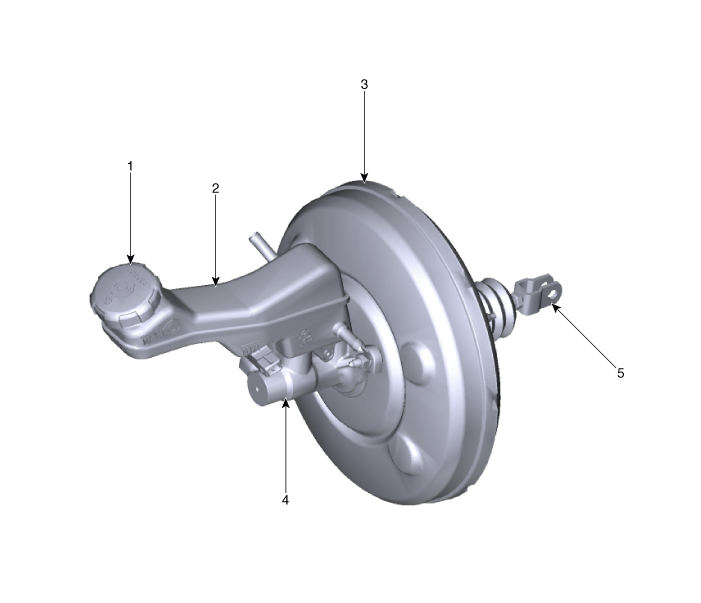

Hyundai Venue. Components and components location

1. Reservoir cap
2. Reservoir
3. Brake booster
4. Master cylinder assembly
5. Clevis

    Master Cylinder

    ..

    Repair procedures

    Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Disconnect the brake fluid level sensor connector (A)...
