Hyundai Venue: Convenient Features / Automatic Climate Control System
Hyundai Venue (QX) (2020-2025) Owners Manual / Convenient Features / Automatic Climate Control System

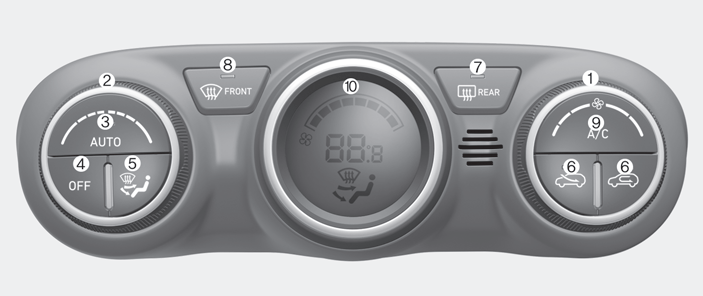

1. Fan speed control knob
2. Temperature control knob
3. AUTO (automatic control) button
4. OFF button
5. Mode selection button
6. Recirculation mode/Fresh mode
7. Rear window defroster button (if equipped)
8. Front windshield defroster button
9. A/C (Air conditioning) button
10. Climate control screen
System Maintenance
Cabin air filter
[A] : Outside air, [B] : Recirculated air
[C] : Cabin air filter, [D] : Blower
[E] : Evaporator core, [F] : Heater core
The cabin air filter is installed behind the glove box...
Automatic Temperature Control Mode
The Automatic Climate Control System is controlled by setting the desired temperature.
1. Press the AUTO button (3).
The modes, fan speeds, air intake and air-conditioning will be controlled automatically
by the temperature setting you select...
