Hyundai Venue: Hydraulic System / 26 Brake Control Solenoid Valve (26/B_VFS). Components and components location

Hyundai Venue (QX) (2020-2025) Service Manual / Automatic Transaxle System / Hydraulic System / 26 Brake Control Solenoid Valve (26/B_VFS). Components and components location

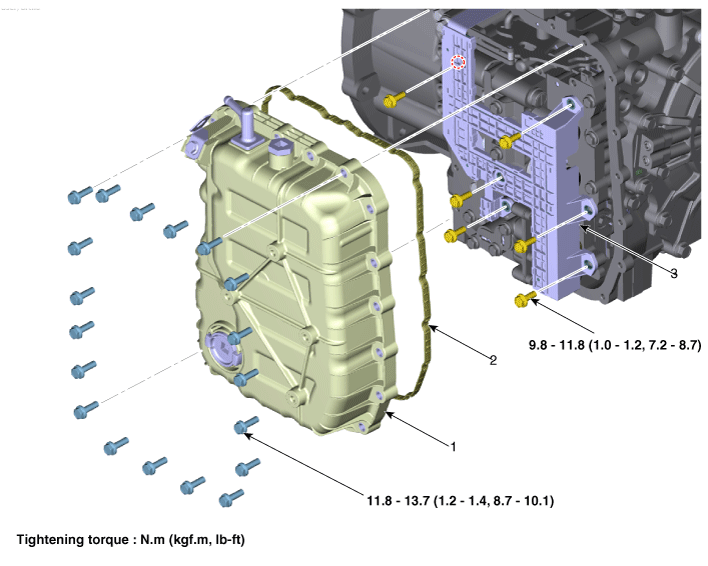

Component Location (1)_Valve Body Cover

Hyundai Venue. 26 Brake Control Solenoid Valve (26/B_VFS). Components and components location

1. Valve Body Cover
3. Solenoid Valve Connector
2. Valve Body Cover Gasket

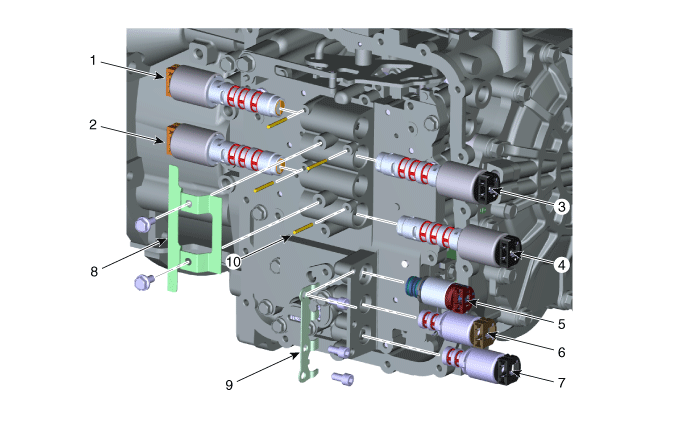

Component Location (2)_Solenoid Valve

Hyundai Venue. 26 Brake Control Solenoid Valve (26/B_VFS). Components and components location

1. 26 Brake Control Solenoid Valve
2. 35R Clutch Control Solenoid Valve
3. Underdrive Brake Control Solenoid Valve
4. Overdrive Clutch Control Solenoid Valve
5. ON/OFF Solenoid Valve
6. Torque Converter Control Solenoid Valve (Damper Clutch Control Solenoid Valve)
7. Line Pressure Control Solenoid Valve
8. Support Bracket (Direct Control Solenoid Valve)
9. Support Bracket (Indirect Control Solenoid Valve)
10. Roller

    26 Brake Control Solenoid Valve (26/B_VFS). Specifications

    Specifications Shape Items Specifications Control current (voltage) [mA] 0 - 1100 Supply pressure [kpa (kgf/cm², psi)] 1569...

    26 Brake Control Solenoid Valve (26/B_VFS). Repair procedures

    Inspection    • Refer to the DTC manual for the check procedure...
